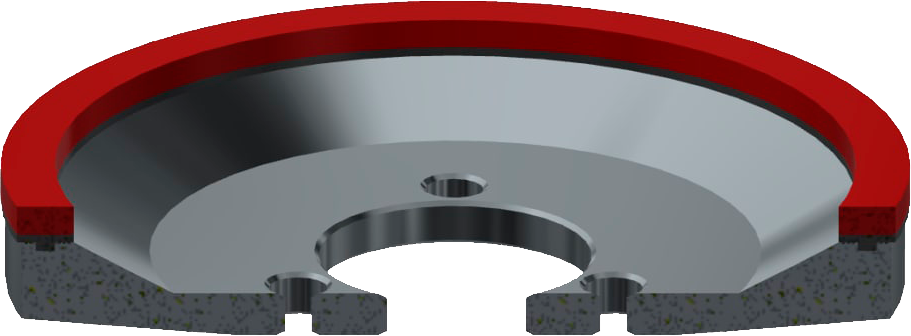

6A2B Special CBN wheels with recess
Sharpening of TC and HSS round knives for paper cutting on machines HIMEL S.A. CLL370; KRYSTIAN; Gambini; OMET LECCO; LYISH. Sharpening of Monginindustry knives and other producers.

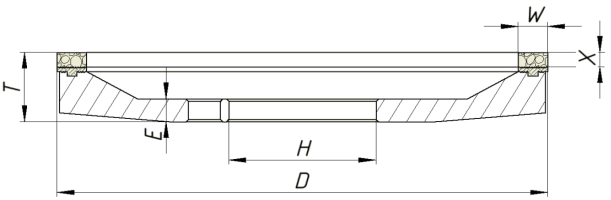

TABLE
| D mm | W mm | X mm | T mm | E mm | H mm |
| 60 | 4 | 3 - 5 | 12 | 5 | according to the order |
| 100 | 5 - 6 | 3 - 5 | 15 | 5 | according to the order |
| 125 | 5 - 6 | 3 - 5 | 17 | 5 - 9 | according to the order |
ORDER SAMPLE
| SHAPE | D * T * W * X * H |
| 6А2B | 100 х 15 х 6 х 3 х 32 В251 DS01 |
ANY OTHER SHAPE IS POSSIBLE TO PRODUCE BY REQUEST WITH DIAMOND OR CBN POWDER.
TABLE
