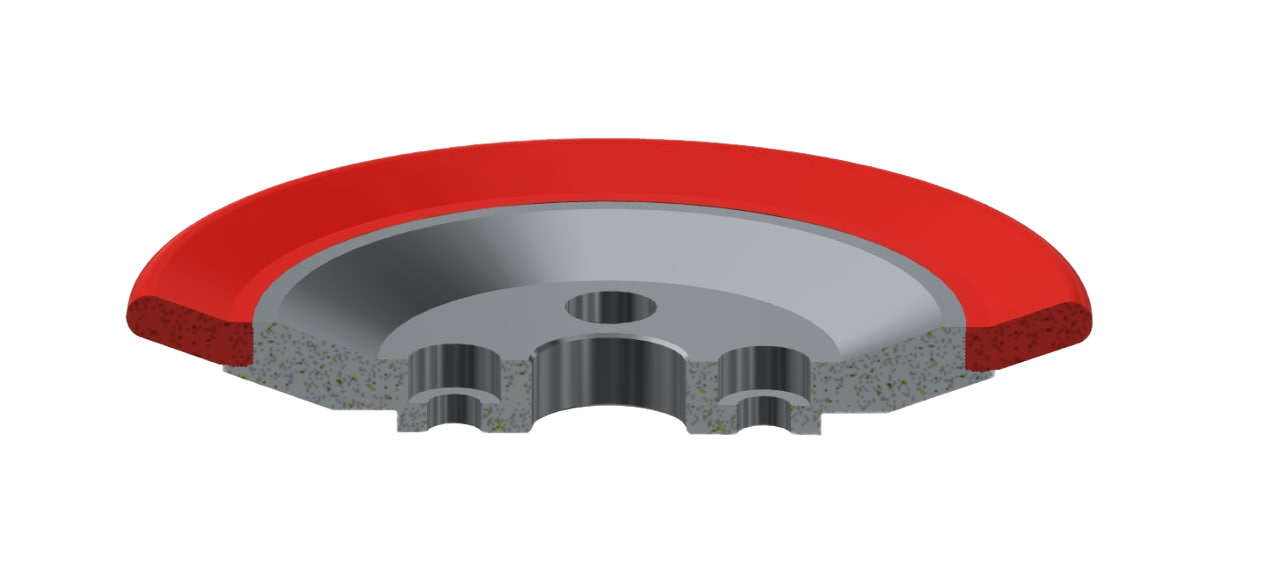

12F9-20 Dish shaped CBN wheels with radius
Sharpening and finishing of a set of HSS cutters on CRP2000-ACEco machines, cleaning of seams after welding using grinders
TABLE

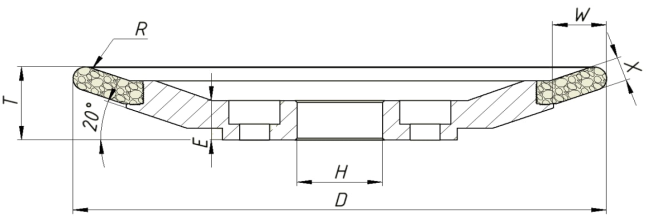

| D mm | W mm | X mm | T mm | E mm | H mm | R |
| 125 | 12 | 5 | 15 | 9 - 10 | by request | 1,5 - 3 |
| 150 | 12 | 5 | 15 | 10 - 11 | by request | 1,5 - 3 |
| 175 | 10 | 3 - 5 | 12 - 15 | 10 - 11 | by request | 1,5 - 3 |
| 200 | 10 | 5 | 15 | 10 - 11 | by request | 1,5 - 3 |
ORDER SAMPLE
| SHAPE | D * T * W * X * H |
| 12F9-20 | 125 х 15 х 12 х 6 х 22 D126 WH01 |
ANY OTHER SHAPE IS POSSIBLE TO PRODUCE BY REQUEST WITH DIAMOND OR CBN POWDER.
TABLE
