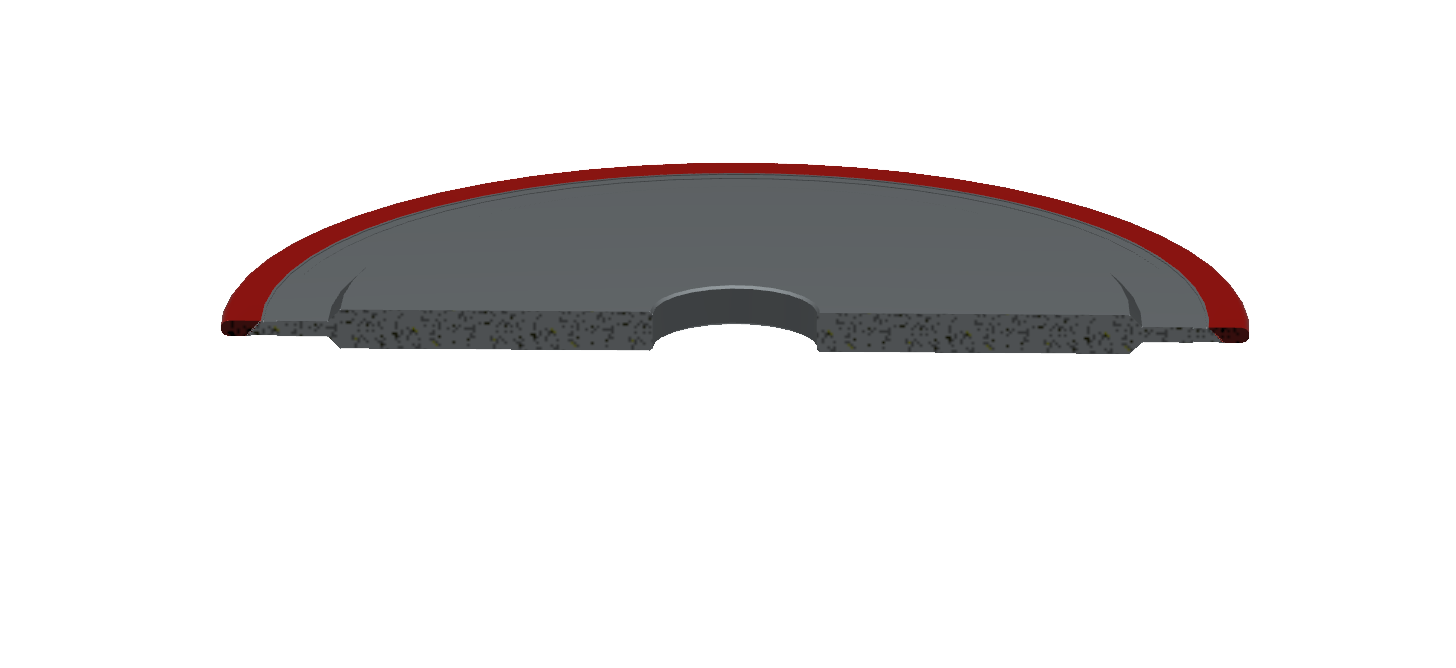

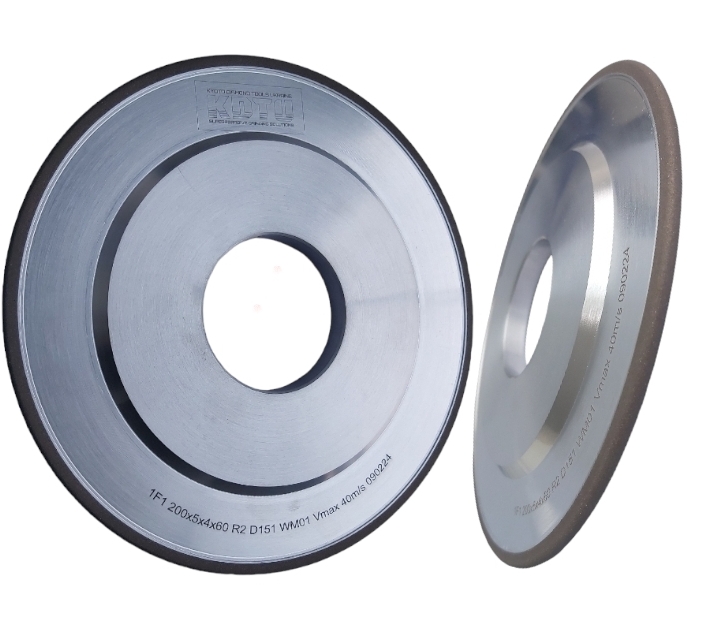

14F1; 1F1 Diamond and CBN radius wheels

Sharpening and profiling of profiled knives of TC and HSS on machines WEINIG Rondamat; AKE AKEMAT U, U4, U6R2, B10; UT.MA AL802, AL804; WRIGHT; WALTER WOODTRONIC NC, WOODTRONIC NC3, WOODTRONIC NC5; STEHLE VARIO 92-1 DIAMOND PROFILE and DIAMOND UNIVERSAL , VARIO 92-2 CBN PROFILE and CBN UNIVERSA. Проточка корпусов дисковых пил и фрез, заточка на станках Businaro, Loroch CNC

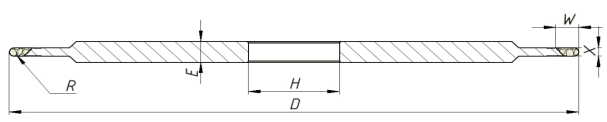

TABLE

D mm	W mm	X mm	E mm	H mm	R mm
50	5	2 - 4	5	by request	1; 1,5; 2
75	5	2 - 4	6	by request	1; 1,5; 2
100	5	2 - 6	8	by request	1; 1,5; 2; 2,5; 3
125	5 - 8	1.3 - 12	6 - 12	by request	0,65; 0,8; 1; 1,25; 1,5; 1,6; 2; 2,5; 3; 4; 5; 6
150	5 - 8	1.3 - 12	6 - 12	by request	0,65; 0,8; 1; 1,25; 1,5; 1,6; 2; 2,5; 3; 4; 5; 6
175	5 - 8	1.3 - 12	8 - 12	by request	0,65; 0,8; 1; 1,25; 1,5; 1,6; 2; 2,5; 3; 4; 5; 6
200	5 - 8	1.3 - 12	8 - 12	by request	0,65; 0,8; 1; 1,25; 1,5; 1,6; 2; 2,5; 3; 4; 5; 6
250	5 - 8	1.3 - 12	10 - 12	by request	0,65; 0,8; 1; 1,25; 1,5; 1,6; 2; 2,5; 3; 4; 5; 6
