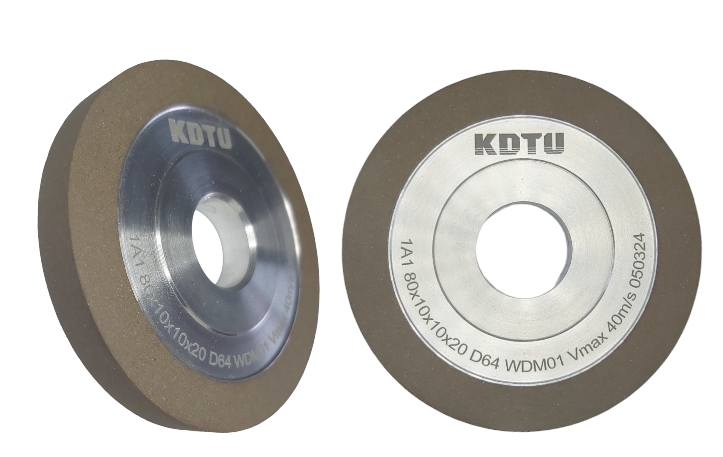

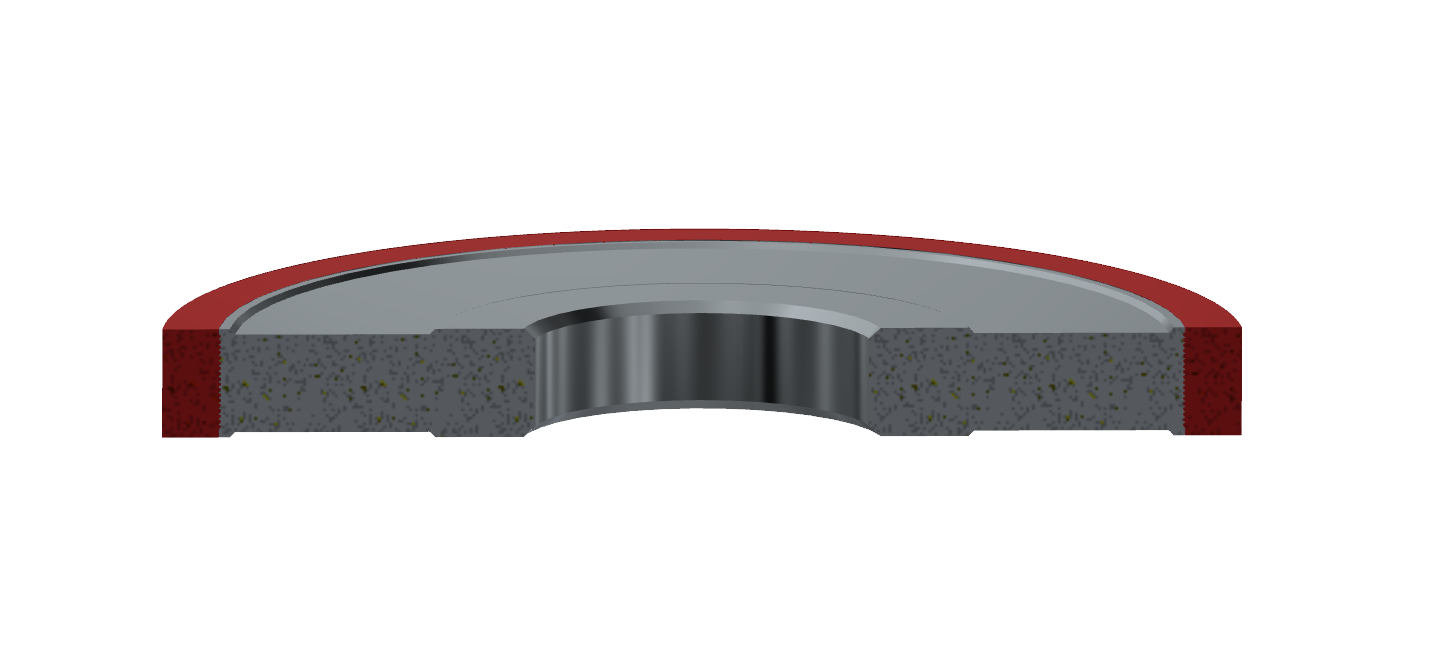

1A1 Straight profile diamond grinding wheels

USAGE

Sharpening and finishing of the side faces of circular saw teeth on Vollmer CNC machines and manual sharpening. Grinding the circular saw body for tooth brazing. Profiling of knives on WEINIG Rondamat machines; WALTER WOODTRONIC NC3. Flat grinding of guillotine knives, Geibel & Hotz Gmbh FS 1060 SA. Shape 1A1 diamond and CBN wheels are manufactured with diameters from 30 mm to 350 mm and widths from 3 mm to 100 mm. 1A1 diamond wheels are used on flat grinding machines, centerless grinding. For the manufacture of carbide columns, drill bit teeth, rough and finish grinding of carbide parts and metalworking tools.

ADVANTAGES OF CBN SUPER ABRASIVES

Elbor or CBN wheels 1A1 can be used for grinding hard steels, both with cooling and dry. They can effectively replace abrasive corundum wheels. At the same time, they have much greater resistance. They do not leave spent sludge after grinding. Thus, CBN wheels do not pollute the cooling liquid, do not clog the cleaning filters. CBN wheels can also be called cubonite, borazon, even grinding stones. When working dry, there is no dust in the air. They do not clog the bearings with abrasive sludge. This significantly affects the durability of the machine and its components. CBN grinding wheels have higher productivity and can remove more material from the surface being processed than the hardest corundum abrasives. Therefore, diamond and CBN are considered super abrasives. Now grinding wheels with super abrasives are widely used in sharpening various tools in the mechanical engineering, woodworking industries, various auxiliary tool shops on sharpeners instead of conventional abrasives. They have especially gained popularity on TORMEK sharpeners for sharpening kitchen and hunting knives, hairdressing and cutting scissors, axes, chisels and many other household tools. The company Kyoto Diamond Tools Ukraine has extensive experience in the production of CBN wheels, and is the undisputed leader in the production of CBN wheels and quite successfully competes with well-known world brands in this industry. Many of our customers doubted the capabilities of such a tool for working with hard steels. But the painstaking work of our team, and the patience and interest of our partners in such experiments, are more and more convincing that cubic boron nitride is a worthy replacement for conventional abrasives.

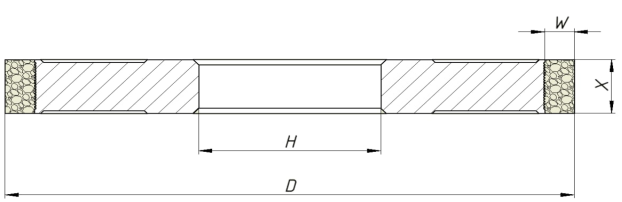

TABLE

D mm	W mm	X mm	H mm
50	2 - 6	2 - 5	by request
75	2 - 6	2 - 5	by request
100	2 - 10	2 - 10	by request
125	2 - 10	2 - 10	by request
150	3 - 10	3 - 10; 20; 25	by request
200	3 - 10	3 - 10; 20; 25	by request
250	3 - 10	3 - 10; 20; 25	by request
300	3 - 10	3 - 10; 20; 25	by request
350	3 - 10	3 - 10; 20; 25	by request
