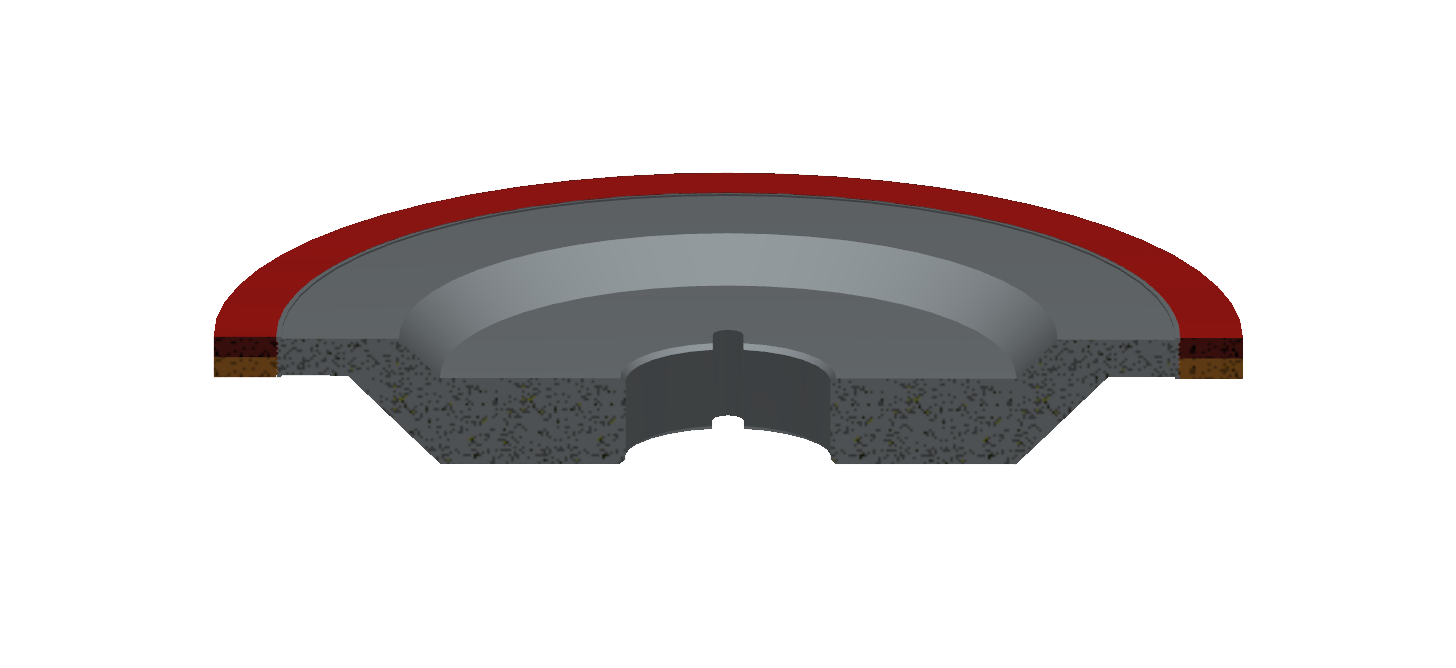

3АА1 Flat diamond grinding wheels with straight profile
Grinding and sharpening of the tooth sides of circular saw. Can be used on CNC machines like VOLLMER CHTF, CC CHTF; VOLLMER-DORNHAN DUO S; DUO TS UNILAEPP 11-450 TS MF 600; WIDMA HKS400 FS600 FS100/H FS1001 GRINDING CENTRE; UT.MA AF800, AF600, AF801

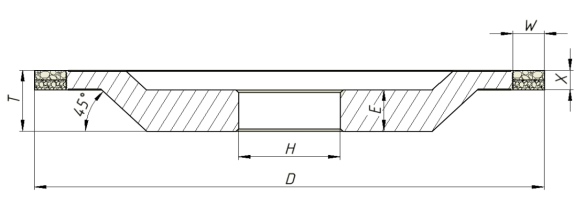

Table
| D mm | W mm | X mm | T mm | E mm | H mm |
| 75 | 6 | 4 (2+2) | 13 | 8 | by request |
| 100 | 6 | 4 (2+2) | 13 | 8 | by request |
| 125 | 6; 8 | 5 (2,5 + 2,5) | 13 | 9-10 | by request |
| 150 | 6; 8 | 6 (3+3) | 15 | 10-11 | by request |
| 200 | 6; 8 | 6 (3+3) | 15 | 10-11 | by request |
Order Sample
| SHAPE | D * T * W * X * H |
| 3АА1 | 100 х 13 х 4(2+2) х 6 х 32 D126/D46 WH01/WS03 |
Any other shape is possible to produce by request with diamond or CBN powder.
